Power Carving Unit Woodworking Tool 1000W

SKU: PWC.FG.900.00
$399.00 RRP: $399.00
au Australian Made

Description

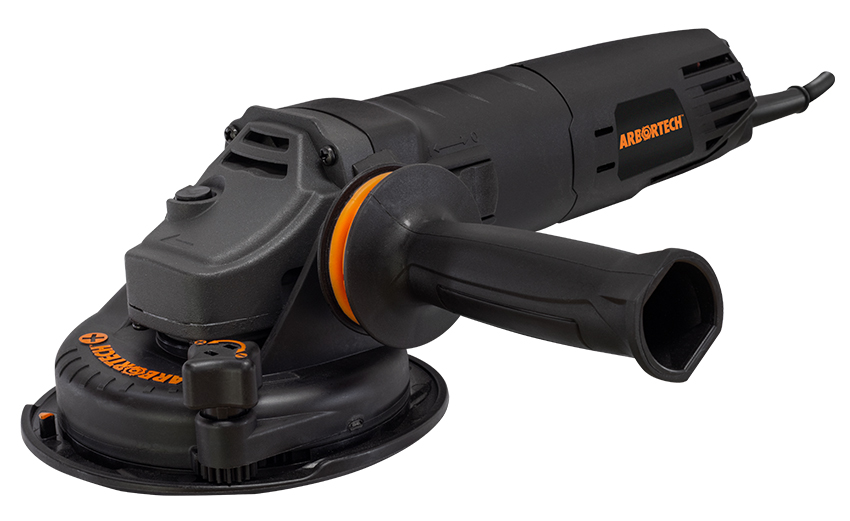

The NEW Power Carving Unit™ is the ideal power source to optimise all of your Arbortech attachments. This first-of-its-kind variable speed angle grinder features a powerful 1000W motor and was designed specifically with woodworking in mind to help take your power carving to the next level.

TURBOPlane™ sold seperately.

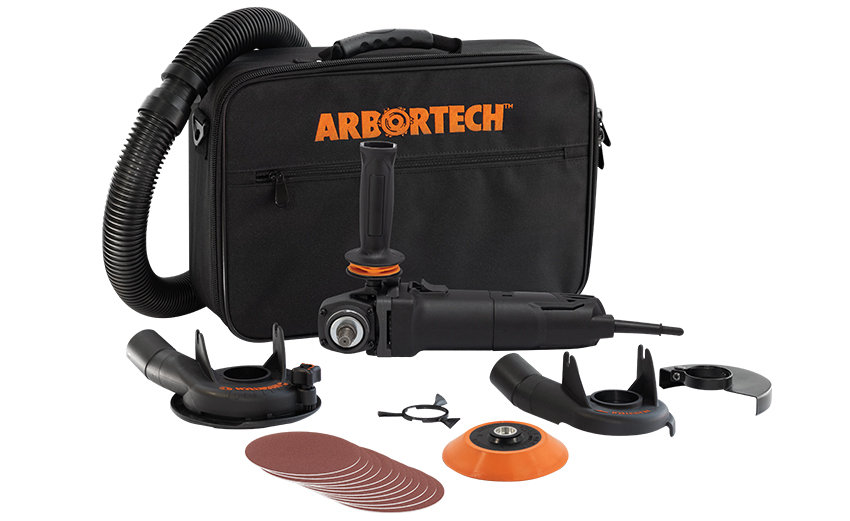

  • 1x 1000W, Variable Speed Power Unit
  • 1x Leveling Guide
  • 1x Chip Catcher
  • 1x Chip Tube
  • 1x Sanding Pad
  • 3x Sanding Discs (per grit) - 60, 120, 180, 240 grit
  • 1x Fan
  • 1x Extra Brush Set
  • 1x Arbortech Carry Bag
Product Video

The Clever Bits

Leveling Guide

Leveling Guide

Adjustable depth for planing.
Hook and Loop

Hook and Loop

Fast and easy attachment of sanding grit.
Dust extraction

Dust extraction

Chip extraction option with or without a vacuum.

Sanding Pad

Designed for gentle shaping and initial sanding stages. This high performance flexible Sanding Pad it is ideal for sanding medium to large projects that contours to any project surface.

Can be used with the Leveling Guide for completely even finishes or with the Chip Catcher attached to a vacuum for wood dust control.

Chip Catcher

Attach to a vacuum to collect dust and chips during free form carving and sanding stages.

Sanding Stage: fit the Sanding Pad into the Chip Catcher and attach to a vacuum to extract wood dust during sanding.

Carving Stage: fit to the Chip Tube or a vacuum to reduce wood chips during free form carving stages with the TURBOPlane™ (sold seperately).

Levelling Guide

Together with the Sanding Pad you can achieve an incredibly level and smooth finish.

When used with the TURBOPlane™ (sold seperately) it becomes a precision planer with adjustable depth.



Dust Extraction

Without a vacuum, the Chip Tube is an easy option to funnel wood chips into a bucket to reduce mess.

TIP: Once connected to the Chip Catcher or Levelling Guide, the Chip Tube will funnel wood chips straight onto the floor or into a bucket.

Extras

Variable Speed
6 variable speed settings ranging from 2,000 rpm to 11,000rpm means you can adjust speed of carving and sanding to suit your needs. Lower speed settings are recommended for the use of the 100mm Sanding Pad (included) and also when using sanders on the Mini TURBO™ attachment (sold seperately).

Enhanced Ergonomics
The vibration reducing handle further increases user comfort and ergonomics. With a soft start, the Power Carving Unit™ has a gradual increase from zero to full performance speed with no abrupt jolts.

    • 1x 1000W Power Unit
    • 1x Leveling Guide
    • 1x Chip Catcher
    • 1x Chip Tube
    • 1x Sanding Pad
    • 3x Sanding Discs (per grit) - 60, 120, 180, 240 grit
    • 1x Fan
    • 1x Extra Brush Set
    • 1x Arbortech Carry Bag

    TURBOPlane not included.

  • Range Speed: 2,000 rpm - 12,000 rpm
    Max Blade Diameter: 100mm
    Max Blade Diameter with Metal Guard: 115mm
    Disc Bore: 22.20mm
    Power Output: 1000 Watt
    Rating:
    AUS: AC, 230-240V, 50Hz (PWC.FG.900.00)
    EUR: AC, 230V~, 50Hz (PWC FG.900.00.60)
    UK: AC, 230V, 50Hz (PWC FG.900.00.40)
    Tool Weight Approx. 2.35kg

  • Please visit the the product support page for more information.
