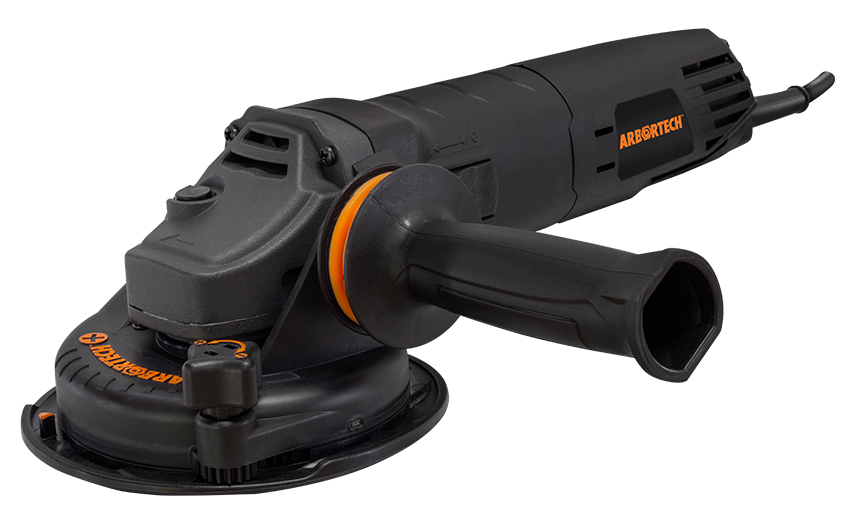

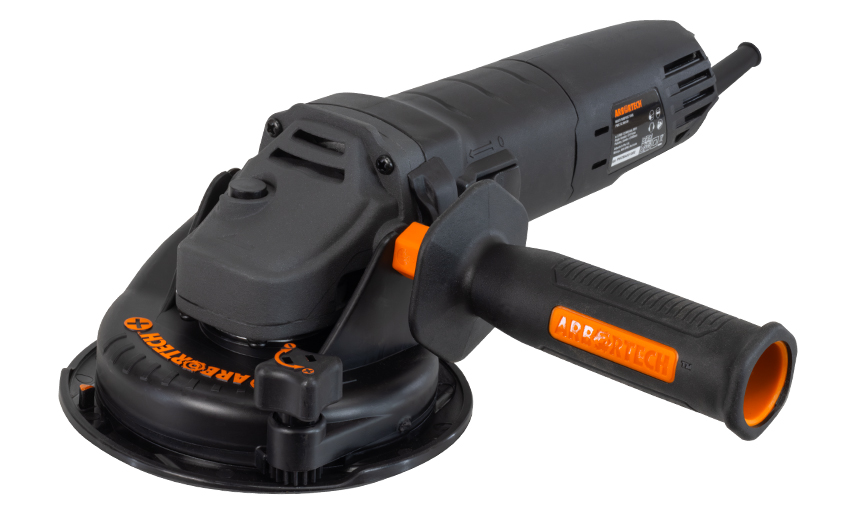

Power Carving Unit™ Winkelschleifer 1000W

SKU: PWC.FG.900.60
au Australian Made


Die Power Carving Unit 900s wurde mit dem bisher leistungsstärksten Arbortech-Motor ausgestattet. Der neu entwickelte 1000 W Motor garantiert optimale Leistung und ist der ideale Antrieb für alle Arbortech Schnitz- und Fräsaufsätze. Erleben Sie Power Carving wie nie zuvor! Dieser sehr robuste Winkelschleifer wurde speziell für die Holzbearbeitung entwickelt, um Ihre Power Carving Erfahrung auf die nächste Stufe zu heben.

TURBOPlane™ sold seperately.

Product Video

The Clever Bits

Leveling Guide

Leveling Guide

Adjustable depth for planing.
Hook and Loop

Hook and Loop

Fast and easy attachment of sanding grit.
Dust extraction

Dust extraction

Chip extraction option with or without a vacuum.

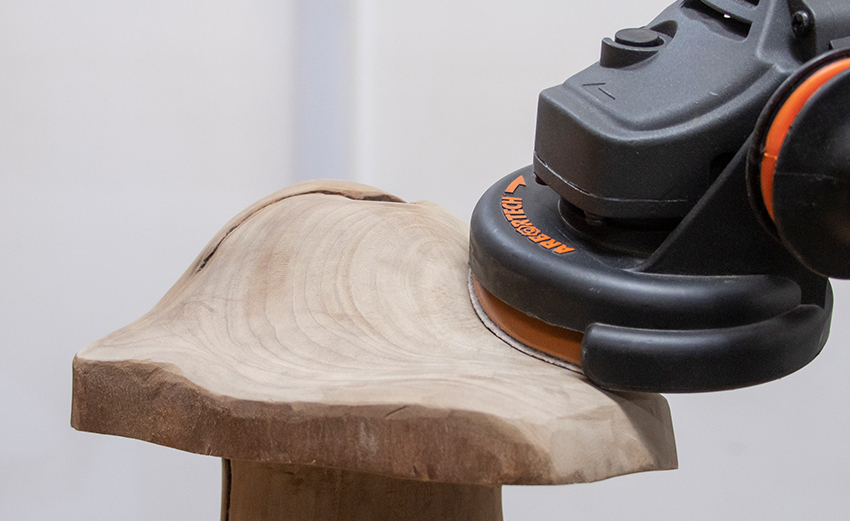

Sanding Pad

Designed for gentle shaping and initial sanding stages. This high performance flexible Sanding Pad it is ideal for sanding medium to large projects that contours to any project surface.

Can be used with the Leveling Guide for completely even finishes or with the Chip Catcher attached to a vacuum for wood dust control.

Chip Catcher

Attach to a vacuum to collect dust and chips during free form carving and sanding stages.

Sanding Stage: fit the Sanding Pad into the Chip Catcher and attach to a vacuum to extract wood dust during sanding.

Carving Stage: fit to the Chip Tube or a vacuum to reduce wood chips during free form carving stages with the TURBOPlane™ (sold seperately).

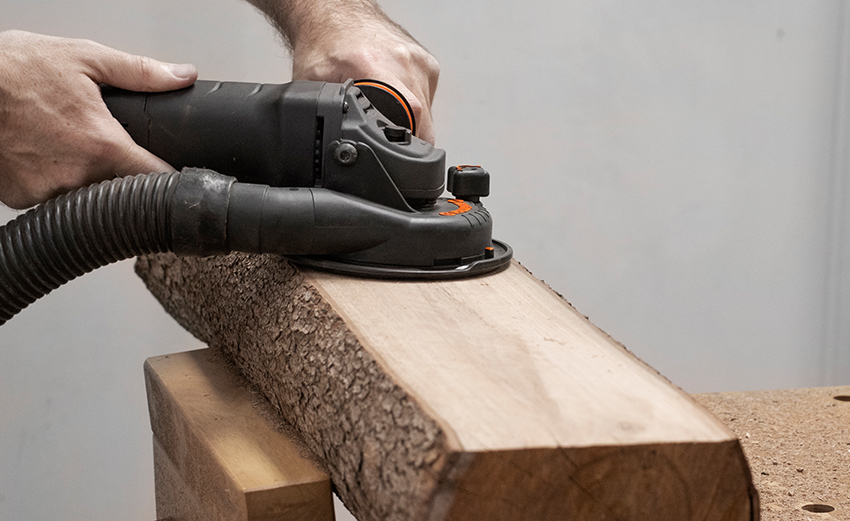

Levelling Guide

Together with the Sanding Pad you can achieve an incredibly level and smooth finish.

When used with the TURBOPlane™ (sold seperately) it becomes a precision planer with adjustable depth.


Dust Extraction

Without a vacuum, the Chip Tube is an easy option to funnel wood chips into a bucket to reduce mess.

TIP: Once connected to the Chip Catcher or Levelling Guide, the Chip Tube will funnel wood chips straight onto the floor or into a bucket.


Variable Speed
6 variable speed settings ranging from 2,000 rpm to 11,000rpm means you can adjust speed of carving and sanding to suit your needs. Lower speed settings are recommended for the use of the 100mm Sanding Pad (included) and also when using sanders on the Mini TURBO™ attachment (sold seperately).

Enhanced Ergonomics
The vibration reducing handle further increases user comfort and ergonomics. With a soft start, the Power Carving Unit™ has a gradual increase from zero to full performance speed with no abrupt jolts.

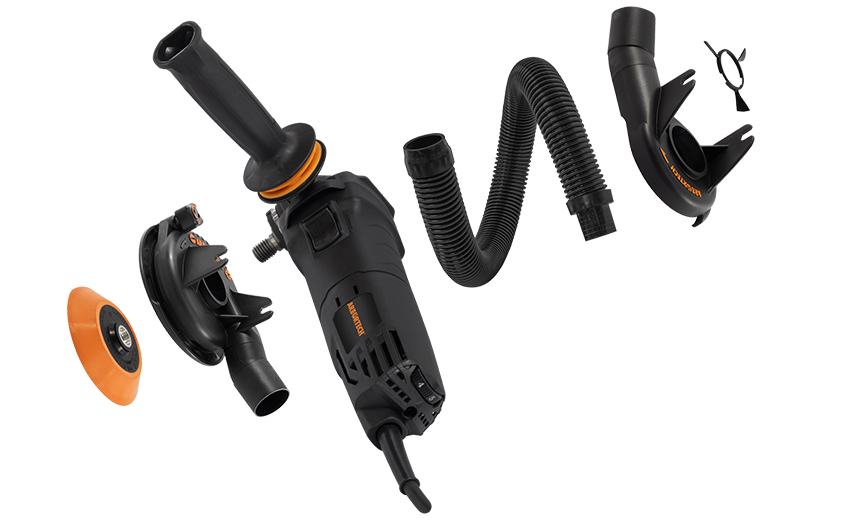

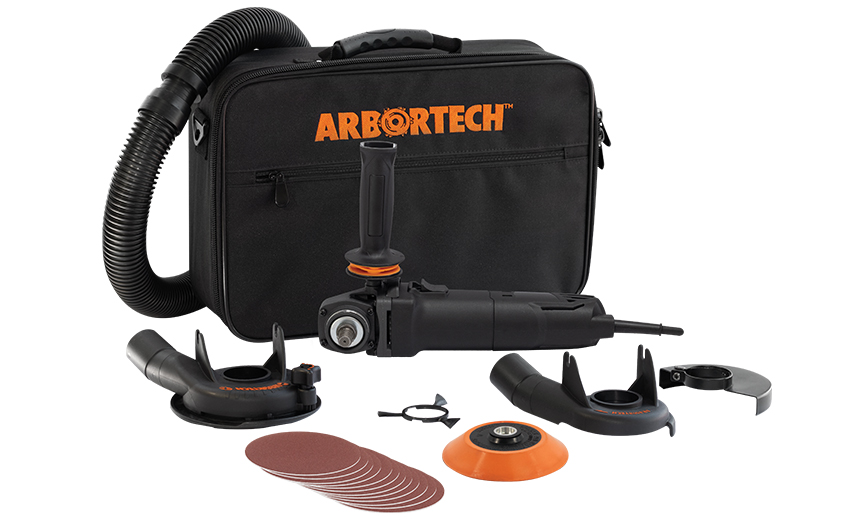

    • 1 Stück Power Carving Unit 1000 W – Winkelschleifer mit Drehzahlregelung – 2.000 U/ Min – 12.000
    • U/ min, 6 Stufen (Werkzeugaufnahme: M14)
    • 1 Stück Levelling Guide - Planhobel – Aufsatz zum Hobeln & Schleifen
    • 1 Stück Chip Catcher - Spänefänger Aufsatz
    • 1 Stück Chip Tube - Schlauchaufsatz für Holzspäne
    • 1 Stück Sanding Pad - Schleifteller Ø 100 mm
    • 12 Stück Schleifpads Ø 100 mm (je 3x pro Körnung 60er, 120er, 180er, 240er)
    • 1 Stück Ventilatoraufsatz
    • 1 Stück Metall-Schutzhaube 1 Satz Ersatzkohlebürsten
    • 1 Stück ARBORTECH – Transporttasche

    TURBOPlane not included.

  • Range Speed: 2,000 rpm - 12,000 rpm
    Max Blade Diameter: 100mm
    Max Blade Diameter with Metal Guard: 115mm
    Disc Bore: 22.20mm
    Power Output: 1000 Watt
    AUS: AC, 230-240V, 50Hz (PWC.FG.900.00)
    EUR: AC, 230V~, 50Hz (PWC FG.900.00.60)
    UK: AC, 230V, 50Hz (PWC FG.900.00.40)
    Tool Weight Approx. 2.35kg

  • Please visit the the product support page for more information.
